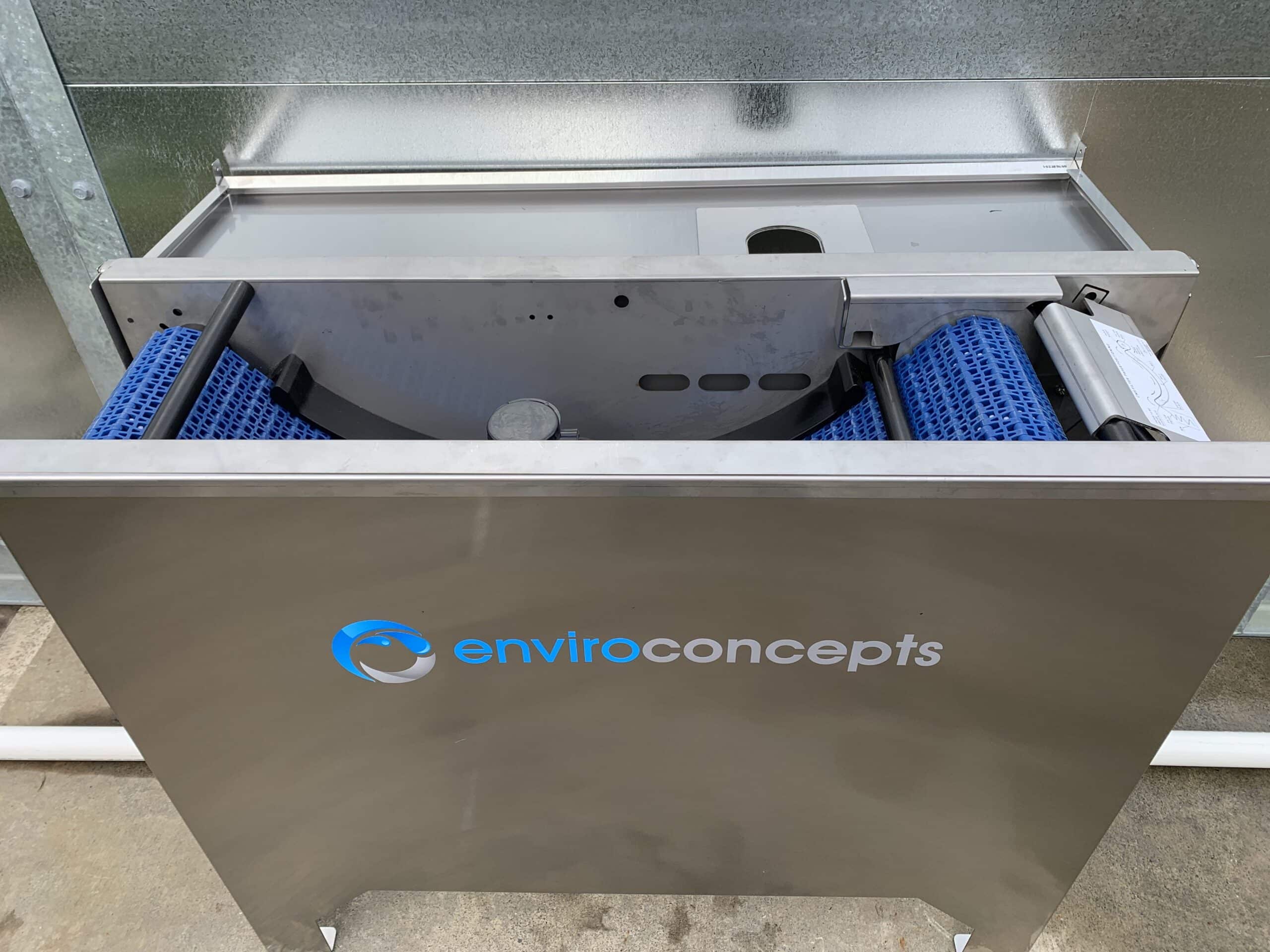

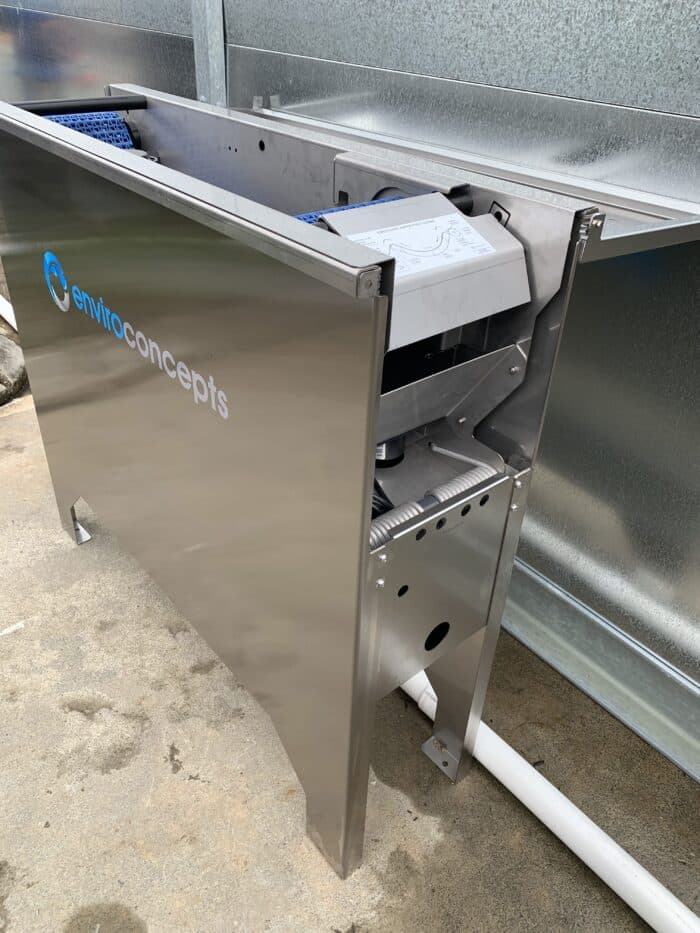

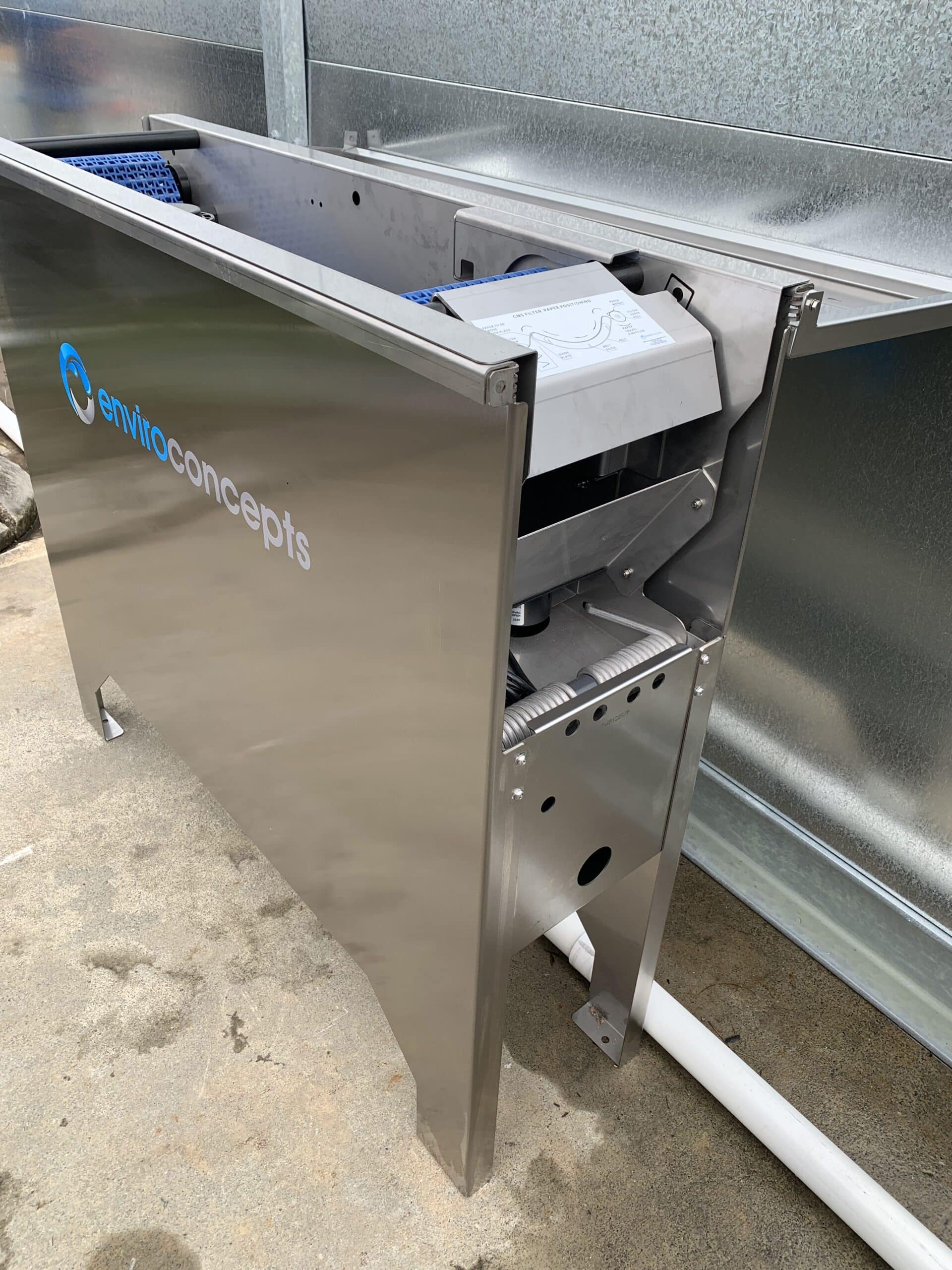

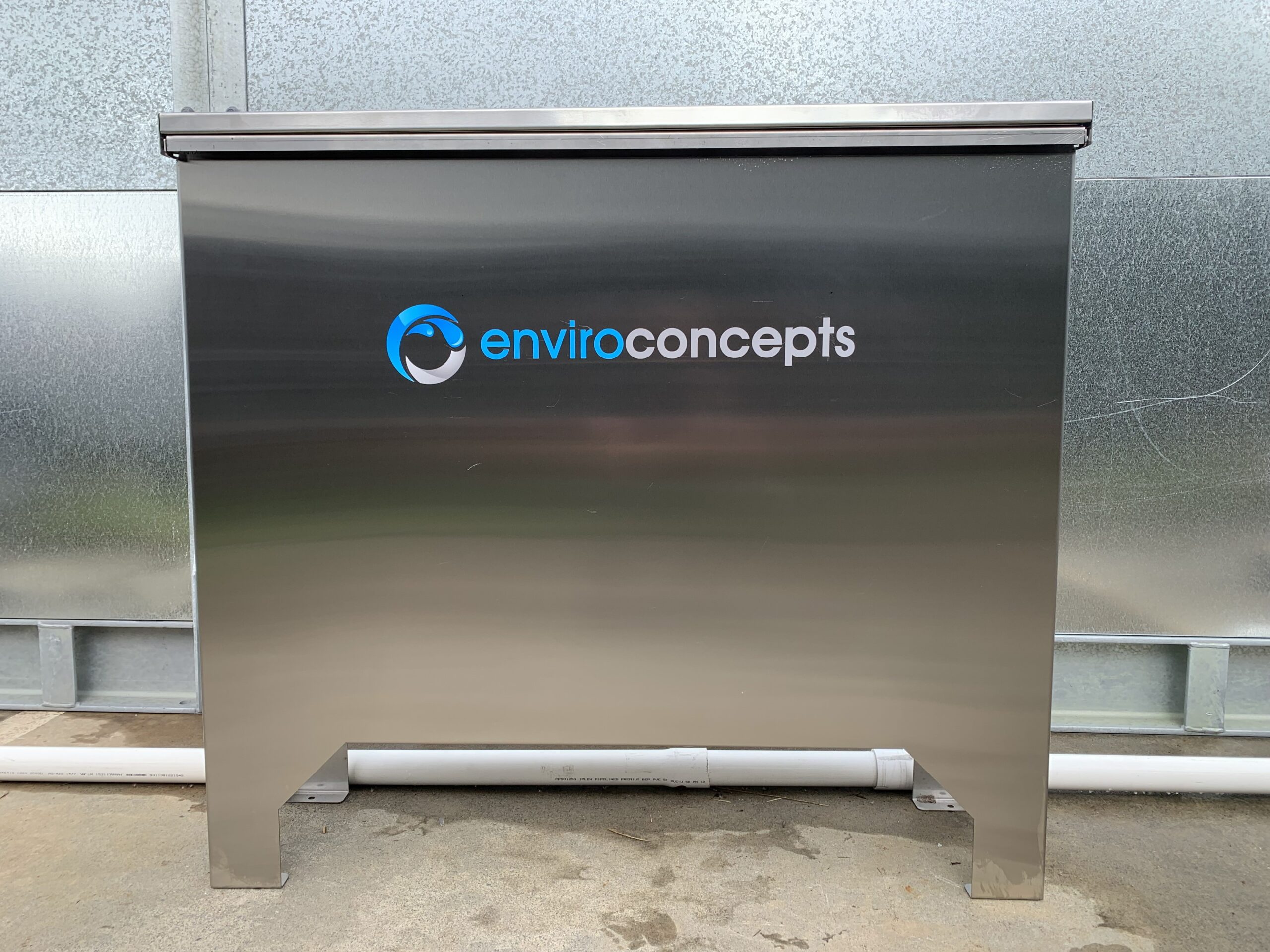

Continuous Media System

Separation Type	CMS Filter paper (5-20 µm pore size)
Types of Oil Separation	High suspended solids and washbay effluents
CMS Dimensions	1190mm x 525mm x 1150mm

Continuous Media System | Specifications

Model	Length	Width	Height
CMS-30	1190mm	525mm	1150mm
CMS-100	1188mm	674mm	1150mm

Specifications
Feed Water Source	High suspended solids wastewater and wash bay effluent
Flow Capacity	25 to 100 L/min
Dimensions	1190mm x 525mm x 1150m
Dry Weight	Approx. 80kg
Power Requirements	240v (pump), 24v (conveyor drive)
Material of Construction	Stainless Steel

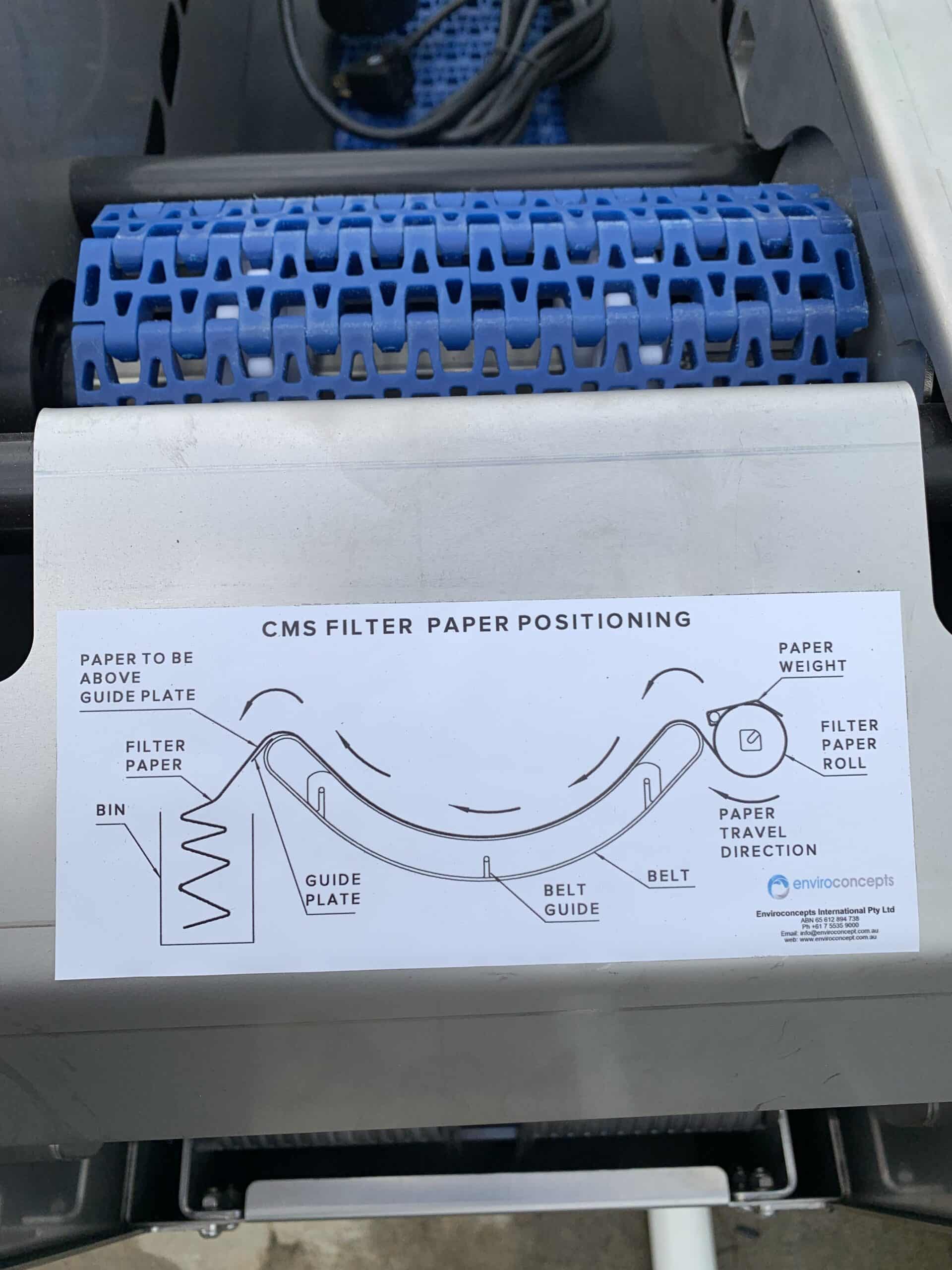

Media	CMS Filter paper (5-20 µm pore size)
Suspended Solids Reduction	up to 95%

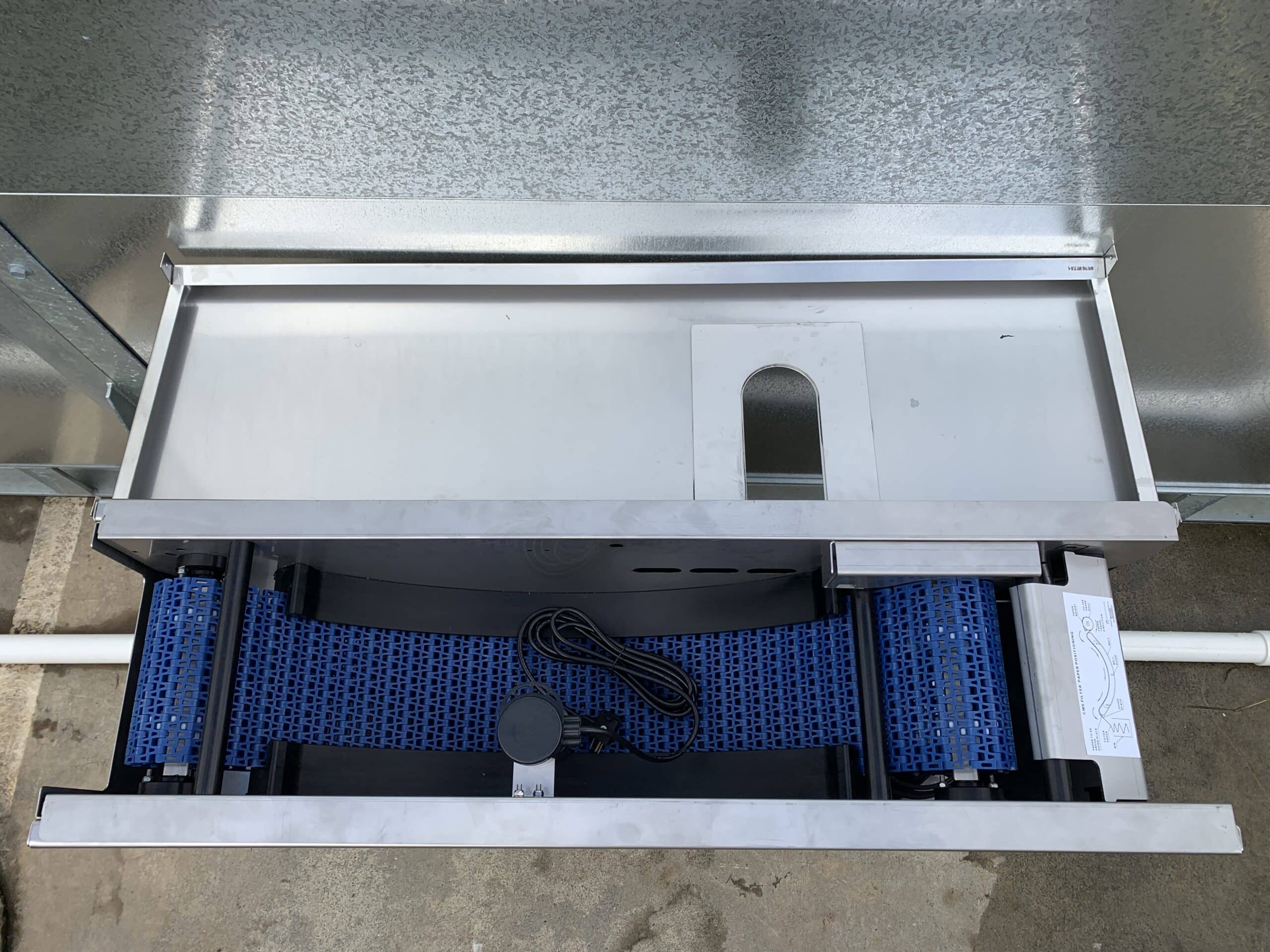

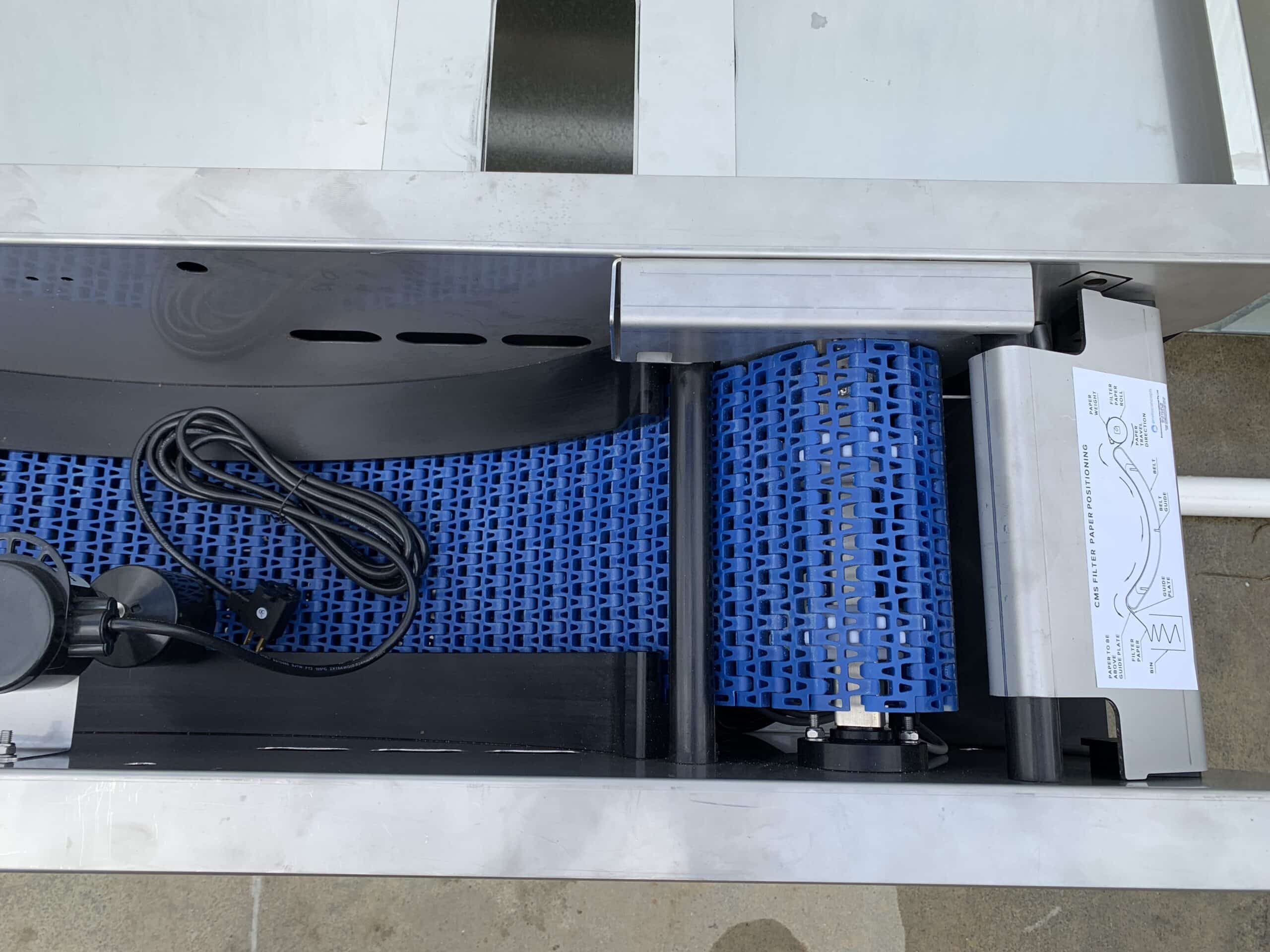

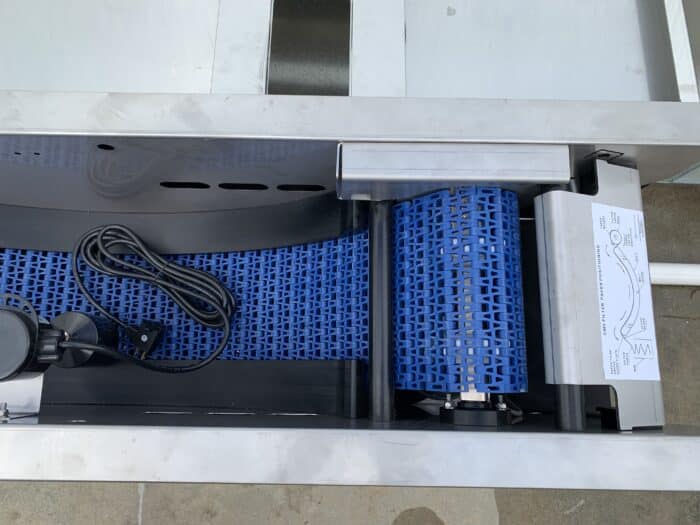

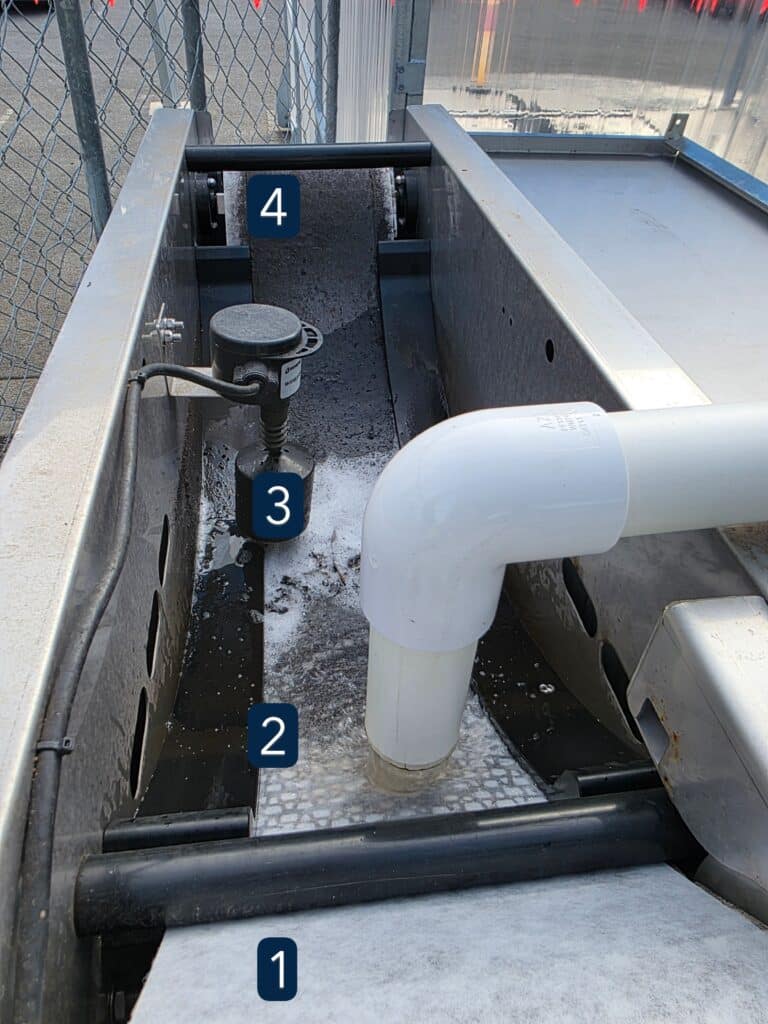

Standard Features	CMS Filter Paper, Transfer Pump, Motorised Conveyor, Stainless Steel Lid, Catchment Tray

Pad Qty:	0.5 Pad
Wash Bay Size:	2.4m Long x 3.5m Wide
Walls:	1.2m \| 1.8m \| 2.4m High
Ramps:	0.6 Wide x 1.5m Long each
Gutter:	Galvanised with float switch
Weight Capacity:	2 Tonne per axle rating
Warranty:	10 Years structural warranty

Pad Qty:	1 Pad with 1.1m wide walkways
Wash Bay Size:	6.0m Long x 4.7m Wide
Walls:	2.0m High
Ramps:	0.9 Wide x 1.5m Long each
Gutter:	Galvanised with float switch
Weight Capacity:	2T and 12T (Tonne per axle rating)
Warranty:	10 Years structural warranty

Pad Qty:	6 Pads
Wash Bay Size:	14.4m Long x 6.5m Wide
Walls:	1.2m \| 1.8m \| 2.4m High
Ramps:	2T – 1.5m Long & 12T 2m Long
Gutter:	Galvanised with float switch
Weight Capacity:	2T and 12T (Tonne per axle rating)
Warranty:	10 Years structural warranty
