Lamella Clarifier

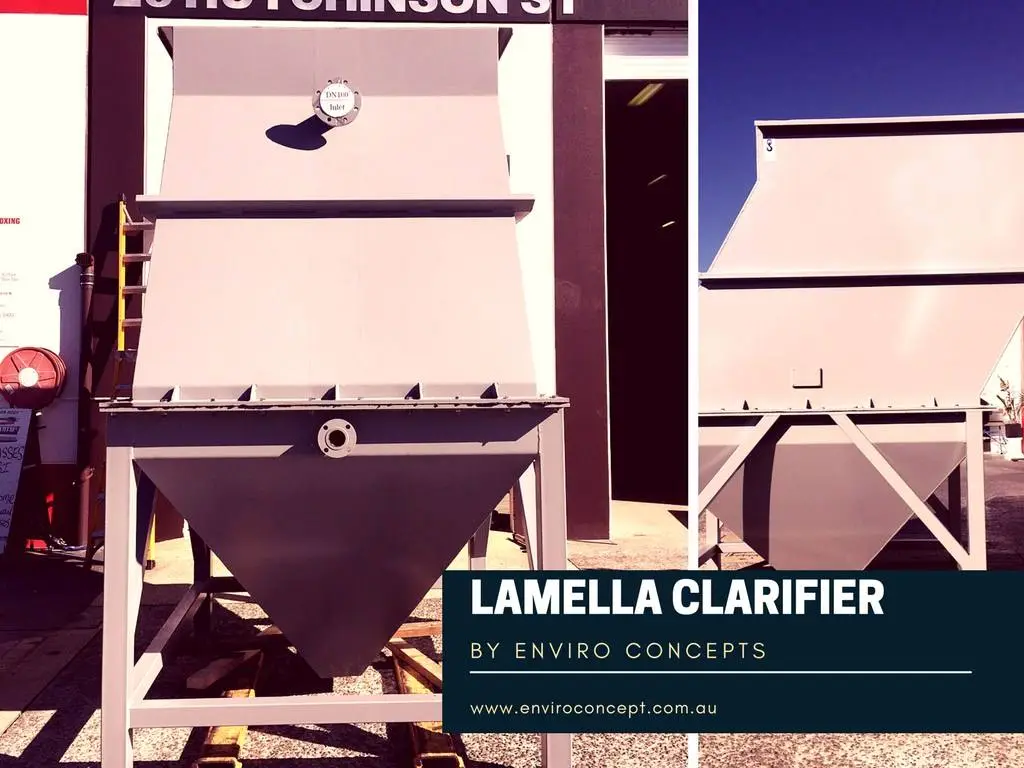

Enviro Concepts Lamella Clarifier is a compact, high surface area Plate Clarifier engineered for most applications in wastewater clarification. It is engineered for high flow rate sedimentation and settling of flocculated wastewater streams. Our units are pre-engineered, pre-assembled and factory tested, ensuring reliable operation, minimising site installation and start-up time.

High flow rate sedimentation and settling in a Lamella Clarifier works by having a flocculated liquid/solid stream (e.g. raw wastewater, activated sludge mixed) flow upwards between inclined Lamella Plates. The flocculated solids tumble down to the plate surface by gravity and to a sludge collection hopper. The clarified water overflows through a weir that exits the top of the lamella clarifier.

APPLICATION

Lamella clarifiers are utilized in a wide range of industries to treat industrial waste water where solid sizes and loading are variable.

  • Industrial waste water treatment
  • Municipal waste water treatment
  • Biological purification
  • Pulp and paper industry
  • Treatment of effluent in metal finishing
  • Thickening in mining related industries

It’s application includes

  • Wash Bays for Cars and Trucks
  • Mine Vehicles and Equipment Wash Downs
  • Mechanical and Panel Beating Workshops
  • Industrial Wash Processes
  • Sea Water Desalination
  • Storm and Ground Water Treatment
  • Restaurants and Hotels
  • Grease Trap Waste Treatment
  • Food Industry Wastewater
  • Activated Sludge Systems
  • Sludge Thickening

Enviroconcepts, Water Filtration, Lamella Clarifier



FEATURES

Enviro Concepts Lamella Clarifiers are engineered to efficiently remove solid particles from liquids and are a great substitute for traditional settling tanks. Inclined (lamella) plates provides the large settling area over a small footprint.

Lamella clarifiers can handle a feed water concentration of up to 10,000 mg/L of oil and grease, and up to 4,000 mg/L of suspended solids. Under standard operating conditions and with addition of coagulants and flocculants, lamella clarifiers can achieve more than 90% suspended solids removal. Lamella clarifiers have no moving parts which means that other than the inlet and sludge pumps, there is minimal energy input required.

Features include:

  • Coated Carbon Steel or Stainless 304 and 316
  • Anti-corrosion Treatment
  • uPVC Lamella Plates
  • Equal Flow Distribution
  • Consistent Laminar Flow
  • Durable and Compact

SPECIFICATION

Feed Water Source

Municipal and industrial wastewater; activated sludge mixed liquor

Flow Capacity

5 to 80 m³/hr

Max. Suspended Solids

4,000 mg/L

Dry Weight

Approx 1.0 to 4.0 Tonne

Dosing Chemicals

EnviroCoag, EnviroFloc, EnviroBase, EnviroAcid

Suspended Solids Reduction

Up to 90% (with coagulation/flocculation)

Lamella Plate Angle

60 degrees

Lamella Plate Thickness

6mm

Lamella Plate Spacing

8-10 cm

Lamella Clarifier, Enviro Concpets, Clarifier

Lamella Clarifier, Clarifier, Enviro Concepts

Click here if you want to download our specification sheets

If you would like more information on Clarifiers please contact us for a FREE Online Quote.
