Product Summary

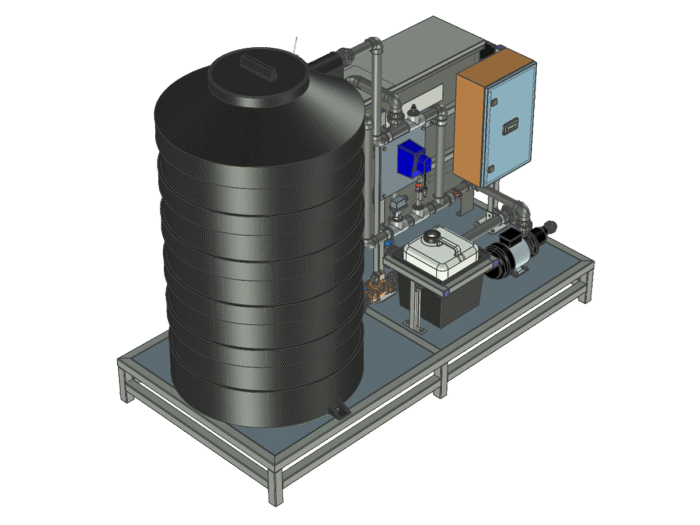

The Enviroconcept Dosing System is engineered to dose and monitor chlorine and pH levels in wastewater, providing automated disinfection and pH balancing for industrial and commercial applications.
Furthermore, the system can be optioned to dose flocculant and coagulant for use with clarifiers and DAFs.
The system incorporates integrated sensors for temperature, flow, pH, ORP, FAC, turbidity, conductivity, and reference probes, enabling accurate, real-time monitoring and control of water quality.
Key Benefits
-
Automated Disinfection & pH Control
-
Versatile Dosing Capacity
-
Multi-Parameter Monitoring
-
Configurable Alarm System
-
Compact, Modular Design
-
Lightweight & Portable
-
Remote Connectivity
Disinfection and pH Control | Specifications
DOSING CAPACITY
| Chemical | Dosage Capacity (L/hr) |
|---|---|
| Chlorine (NaOCl) | 0.2 to 3.0 |
| Acid (HCl, H2SO4) | 0.1 to 3.0 |
| Base (NaOH) | 0.1 to 3.0 |
CONTROL MODULE SPECIFICATIONS
| Module Parameters | Ph | ORP (mV) | Temperature (ºC) | FAC (ppm) |
|---|---|---|---|---|
| Operating Range | 0-14 | 0-999 | 0-100 | 0-200 |
| Resolution | 0.01 | 1 | 0.1 | 0.1 |
| Accuracy | +/- 0.02 | +/- 1 | +/- 0.2 | +/- 0.1 |
| Repeatability | +/- 0.02 | +/- 2 | +/- 0.2 | +/- 0.1 |
| Alarm Range | +/- 0-3.5 | +/- 0-400 | N/A | +/- 0-1.0 |
| Sensor Press. Rating | 700 kPa | 700 kPa | 700 kPa | 700 kPa |
| Sensor Temp. Rating | 50 ºC | 50 ºC | 50 ºC | 50 ºC |
| Specifications | |
|---|---|
| Sensors Fitted | Temp, Flow, pH, ORP/FAC, Reference Probes |
| Shipping Dimension | 52cm x 62cm x 23cm |
| Shipping Weight | 18 kgs |
| Communications Port | RS232 device via D89 plug (internal) |
| Electrical Supply | 220-250 VAC, 50 or 60Hz, 10 amp continously powered “clean” mains supply, 7Amp output relays |
| Data Logging | Log can be set from 1 to 240 minute intervals. Downloaded either locally to a laptop or remotely via a GSM modem |
| Alarms – User Defined | All defined set points are able to be associated with alarm outputs as+, -, or +/- ranges |
| Alarms – No Volt Contact | standard common no-volt alarm is incorporated in all controllers for DDC operation |
| Manifold | uPVC rated to 700 kPa at 50ºC. 20 mm BSP female inlet and outlet piping |
| Peristaltic Pumps | Available in 1 &3 L/hr @ 350kPa. |
Used In
• Mine vehicles and equipment wash effluent
• Mechanical workshops effluent systems
• Storm and groundwater treatment
• Restaurants and hotels (grease trap treatment)
• Industrial wash effluents
• Light and heavy vehicle wash facilities
• Quarantine and weed/seed hygiene applications
• Energy suppliers and resource‐industry wash bays
• Brackish and seawater treatment and desalination
• Recycled water treatment or discharge
Features
-

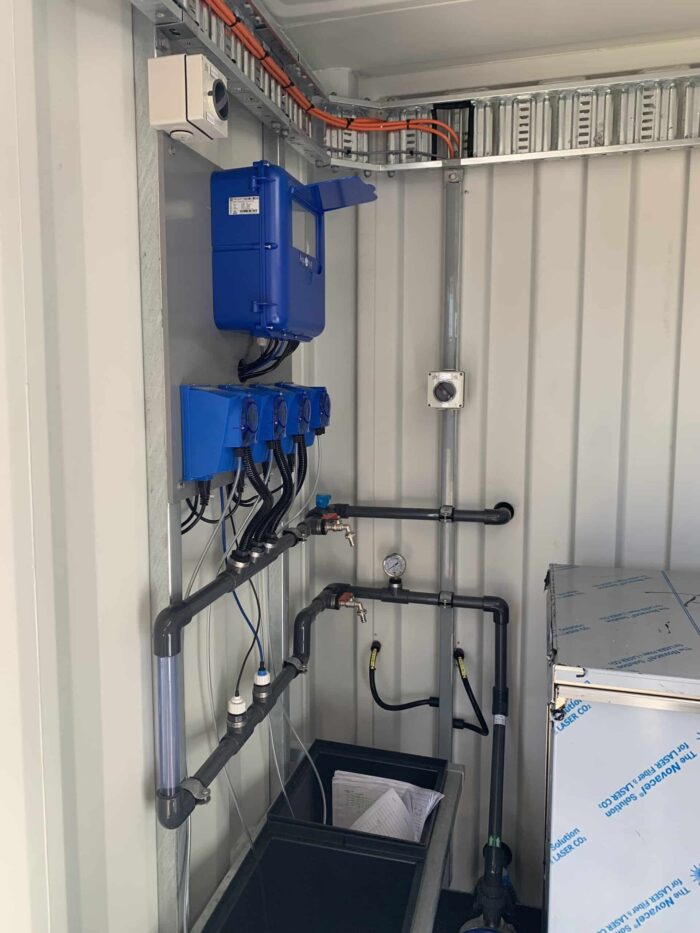

Enviro Controller
-
Secure Panel
-
Reference Probes
-
Data Logging & AlarmsElectrical Control & PLC
-
Peristaltic or Pulse Diaphragm Pumps
-
Mounting Boards, Pipework & Pumps
-
Chemical Bund Boxes
-
Robust, Industrial Grade
Trade Waste Permit
Australia Wide
Before trade waste can be discharged into the council sewer system, business owners are required to obtain trade waste permits and ensure their wastewater quality comply with the trade waste acceptance criteria. This is particularly important as most trade waste requires preliminary or special treatment before it can be discharged into the council sewerage system. For example the kitchen wastewater from a restaurant or a food court will need to go through a grease trap. The effluent from a car wash will need to go through an oil water separator before it is discharged to the council sewerage system.
Australian Quarantine and Inspection Service
AQIS compliant water treatment systems
Department of Agriculture, Fisheries and Forestry
To protect Australia, a strong biosecurity system helps protect our way of life from the threat of exotic pests and diseases to our unique environment, the economy, our health and our agricultural industries.
There are several industries that require AQIS compliant wash down water treatment systems for their import and export of goods. They include:
- Sensitive freight transfer applications
- Agricultural equipment
- Spare part dealers
- Transport and freight logistics
- Imported goods distributors
A+ Recycled Water
Non-potable Use:
While considered safe for certain non-drinking applications, it should not be used for drinking, bathing, or washing clothes.
Strict Standards:
To be classified as A+, the water must meet strict microbiological quality standards set by the relevant state health department.
Dual Reticulation Systems:
Delivered through a separate pipe system to ensure no mixing with potable water.
Step 1 | Consultation
Initial Consultation & Estimate
The project scope is discussed in detail, to better understand the client’s needs, goals, constraints and challenges.
Client will receive:
- Estimate
- Specifications and documentation
- Details of similar projects for comparison
Step 2 | Design
Project Engineering & Planning
Our inhouse engineers map out the project’s design specifications, resources, and schedules. Then engineering drawings are created, and a clear plan is set to ensure efficient progress through all subsequent steps.
Client will receive:
- PFD (Process Flow Diagram) and P&ID (Piping and Instrumentation Diagram)
- General Arrangement and site specific engineering drawings
- Schedule of Works
Step 3 | Approval
Approvals Process
Once the project plan is in place, any necessary permits, certifications, or regulatory approvals are obtained. This ensures that all legal, safety, and industry-specific standards are met before proceeding.
Step 4 | Production
Manufacture & Production
With approvals granted, production commences according to the finalised design and schedule. Materials are sourced, components are fabricated, and quality checks are performed to ensure that the product meets the specified requirements.
Client will receive:
- Updates on the progress of the build
- FAT | Factory Acceptance Test
Step 5 | Installation
Delivery & Installation & Training
The finished product is delivered to the site, our skilled professionals handle the assembly & installation. The project concludes with final inspections to confirm proper operation and overall quality.
Client will receive:
- As Constructed Electrical drawings
- As Constructed General Arrangement
- Manual
- Delivery
- Install & Commission
- Training
Australian Manufacturer
Enviroconcepts proudly designs, engineers, and manufactures all of its wash bays and water treatment solutions in Australia. By keeping every aspect of production local, we ensure the highest quality standards and compliance with Australian regulations. Enviroconcepts in-house team of experts thoroughly tests and refines each product to meet rigorous environmental requirements. Delivering trusted, efficient solutions for businesses nationwide.
In-house Engineering Team
Enviroconcepts is backed by a dedicated, in-house engineering team that collaborates closely on product design, development, and testing. By keeping engineering and manufacturing under one roof, we ensure seamless communication between design, manufacturing, and installation. This hands-on approach allows our team to rapidly refine solutions, address customer feedback, and maintain consistent, high-quality standards at every stage—resulting in reliable and innovative wash bay and water treatment systems, tailored to each client’s specific needs.
Turn-key Solutions
Enviroconcepts offers end-to-end services that take you seamlessly from initial concept to final installation and beyond. Our team handles every step. Design, engineering, manufacturing, delivery, installation, and ongoing support, so clients can rely on a single, trusted partner. By managing the entire process, Enviroconcepts ensures smooth implementation, minimal downtime, and solutions that consistently meet both technical and regulatory requirements.
We Provide:
- Water Authorities Approval
- Connection to the sewer
- Mains power connection
Wash Pads: 2T up to 130T
Enviroconcepts delivers a full range of robust wash pads engineered to accommodate everything from small utility vehicles to heavy mining and construction machinery. Designed and built in-house, these wash pads cater to loads from 2T up to 130T per axle, ensuring durability and compliance. Their modular design allows for quick installation, easy relocation, and reduced downtime—offering a cost-effective, environment-friendly solution for businesses seeking reliable wash infrastructure.
Custom Projects
Enviroconcepts specialises in creating tailored wash bays and water treatment solutions for unique operational needs. Our in-house engineering team works closely with each client to develop custom systems—no matter how complex or specialised—ensuring optimal performance and full compliance. By blending innovative design, robust manufacturing, and hands-on collaboration, we deliver wash solutions that seamlessly integrate with your processes, saving resources while meeting regulatory standards.
