Lamella Clarifier | Specifications
MODEL RANGE & TECHNICAL DATA
| Model | Capacity | Dimensions (m) | Pipe Connections (DN)(mm) | ||||
|---|---|---|---|---|---|---|---|
| (m³/h) | L | W | H | In | Out | Sludge | |
| LST1-005 | 5 | 2.6 | 1.6 | 2.9 | 80 | 50 | 50 |
| LST1-010 | 10 | 3.4 | 1.8 | 3 | 100 | 80 | 50 |
| LST1-020 | 20 | 3.4 | 2.2 | 3.7 | 150 | 100 | 50 |
| LST1-030 | 30 | 4.2 | 2.2 | 3.7 | 150 | 150 | 50 |

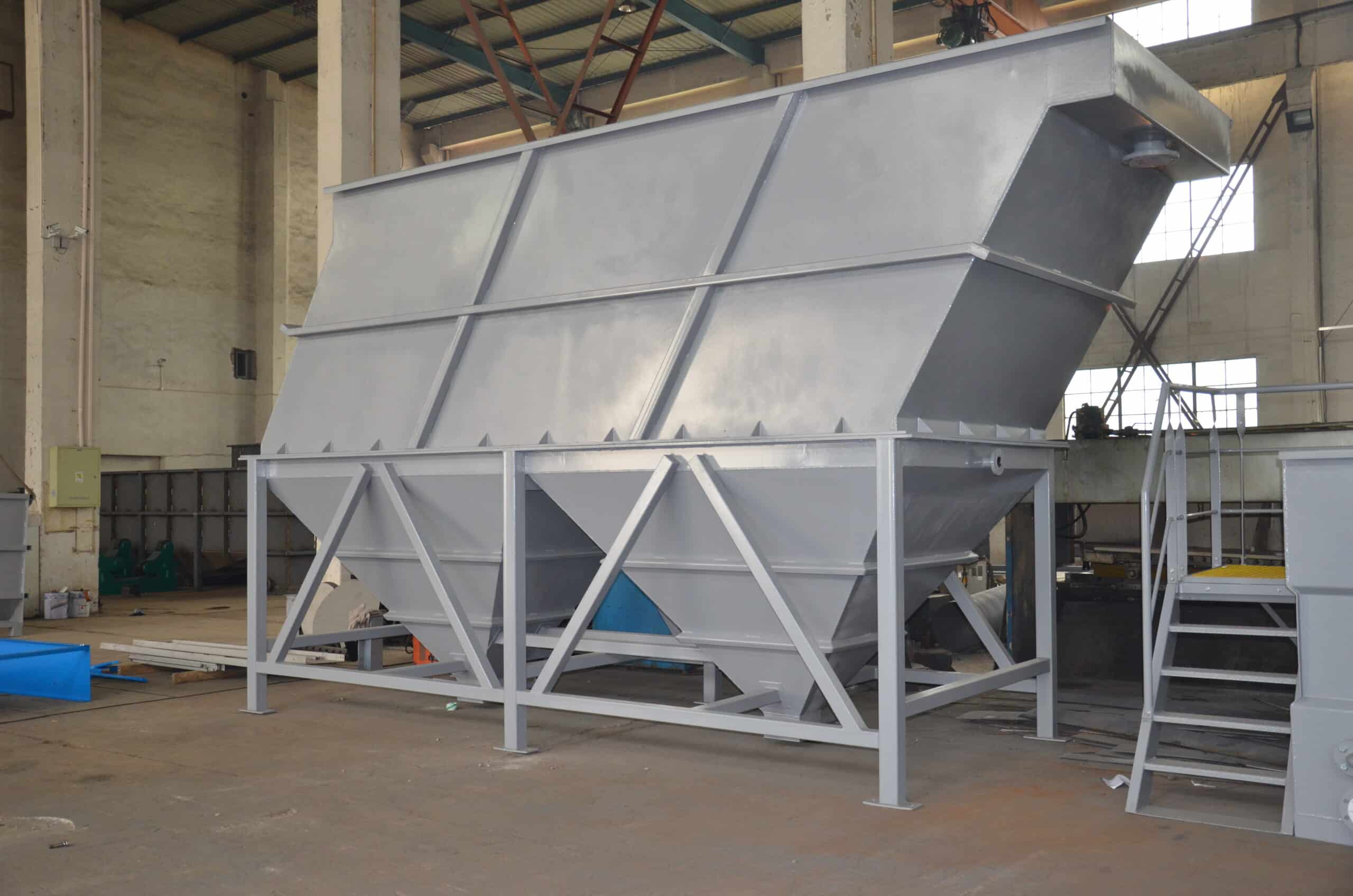

| LST1-050 | 50 | 6.3 | 2.2 | 3.7 | 200 | 200 | 50×2 |
| LST1-080 | 80 | 5 | 3.4 | 4 | 250 | 200 | 80 |
| Feed Water Source | Municipal and industrial wastewater, activated sludge mixed liquor |
| Flow Capacity | 5 to 80 m³/hr |
| Max. Suspended Solids | 4,000 mg/L |
| Dry Weight | Approx. 1.0 to 4.0 Tonne |
| Dosing Chemicals | EnviroCoag, EnviroFloc, EnviroBase, EnviroAcid |
| Suspended Solids Reduction | up to 90% (with coagulation/flocculation) |
| Lamella Plate Angle | 60 degrees |
| Lamella Plate Thickness | 6mm |
| Lamella Plate Spacing | 8~10 cm |
