Media Filter Paper

Dimensions

10m or 14m Long x 3.5m Wide

Material

Hot Dip Galvanised Structural Steel

Load Capacity

12T Tonne Per Axle

Product Summary

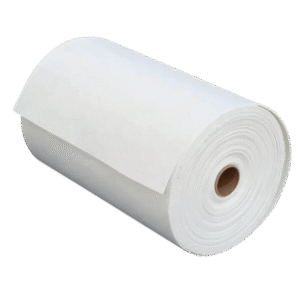

CMS Filter Paper – Media Filter Paper (20 µm Pore Size)

Overview
Enviroconcept’s Continuous Media System (CMS) utilizes this specially designed filter paper to effectively remove fine suspended solids—down to 20 µm—from wastewater and wash bay effluent. This media forms the core of the CMS, capturing up to 95 % of total suspended solids, ensuring clean downstream flow into coalescing plates, deep-bed filters, or recycling units.

Key Features

  • Continuous operation-ready – Designed for roll-feed deployment, with motorised conveyor advancing the media as solids load—preventing clogging and enabling hands-off use.
  • Fine filtration – Standard 20 µm pore size (with optional sizes available) to efficiently capture fine particulates.
  • Custom-fit paper rolls – Available in standard dimensions (e.g., 450 mm wide × 50 m long) for CMS-100 systems; sold individually or in bulk packs.

How It Works
When wastewater enters the CMS, it spreads across the filter paper. Solids are trapped on the surface while treated water passes through. As solids accumulate, a float sensor triggers the conveyor to advance the paper, depositing used media into a waste bin—maintaining filtration efficiency without manual intervention.

Benefits

  • High solids removal – Captures roughly 95 % of suspended solids, reducing load on downstream equipment.
  • Reduced maintenance – Automatic advancement lowers manual cleaning tasks.
  • Seamless integration – Tailored for Enviroconcept’s CMS units; easy roll swap-out when depleted.
  • Flexible sizes – Available in packs or individual rolls to suit consumption needs and system size.

Applications

  • Primary filtration in industrial wash bays and vehicle wash facilities
  • Pre-treatment before oil-water separators, dissolved air flotation units, deep-bed media filters, and membrane systems
  • Ideal for high TSS effluents from workshops, quarries, roadworks, and mining operations

Specifications

  • Pore Size: 20 µm (standard); alternate sizes optionally available
  • Roll Size: 450 mm × 50 m (CMS-100 standard)
  • Packaging Options: Sold as single rolls or packs of five

Ordering & Availability
Compatible with Enviroconcept CMS units (30‑100 L/min capacity). Contact the team to confirm correct media size and roll length; bulk pricing may apply for multi‑packs.
