| Separation Type | Settling Tank & Coalescing Plates |
|---|---|
| Types of Separation | Suspended solids, oil and grease |

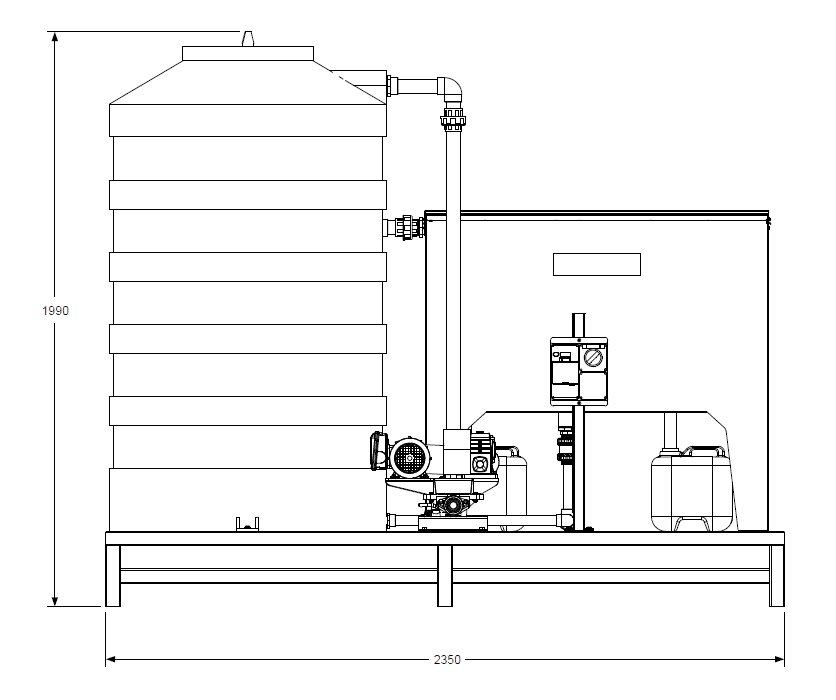

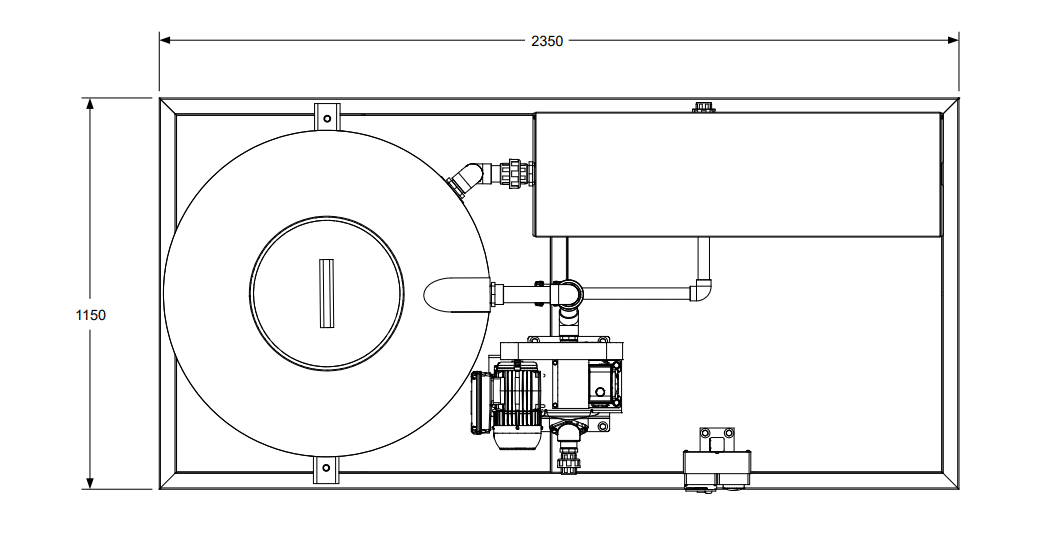

| OWS Dimensions | 2.35m Long x 1.15m Wide x 1.94m High |
| Model | Length | Width | Height |
|---|---|---|---|
| SIOS-30 | 2350mm | 1150mm | 1940mm |
| SIOS-50 | 2350mm | 1150mm | 1940mm |
| SIOS-100 | 2350mm | 1150mm | 1940mm |
| Specifications | |
|---|---|
| 1. PUMP | |
| 2. SETTLING TANK | |
| 3. OWS | |
| 4. ISOLATOR SWITCH | |
| 5. OIL WASTE | |
| 6. Transfer Pit (Optional) | |
| Pad Qty: | 0.5 Pad |
| Wash Bay Size: | 2.4m Long x 3.5m Wide |
| Walls: | 1.2m | 1.8m | 2.4m High |
| Ramps: | 0.6 Wide x 1.5m Long each |
| Gutter: | Galvanised with float switch |
| Weight Capacity: | 2 Tonne per axle rating |
| Warranty: | 10 Years structural warranty |
| Pad Qty: | 1 Pad with 1.1m wide walkways |
| Wash Bay Size: | 6.0m Long x 4.7m Wide |
| Walls: | 2.0m High |
| Ramps: | 0.9 Wide x 1.5m Long each |
| Gutter: | Galvanised with float switch |
| Weight Capacity: | 2T and 12T (Tonne per axle rating) |
| Warranty: | 10 Years structural warranty |
| Pad Qty: | 6 Pads |
| Wash Bay Size: | 14.4m Long x 6.5m Wide |
| Walls: | 1.2m | 1.8m | 2.4m High |
| Ramps: | 2T – 1.5m Long & 12T 2m Long |
| Gutter: | Galvanised with float switch |
| Weight Capacity: | 2T and 12T (Tonne per axle rating) |
| Warranty: | 10 Years structural warranty |
