Underbody Wash Bay

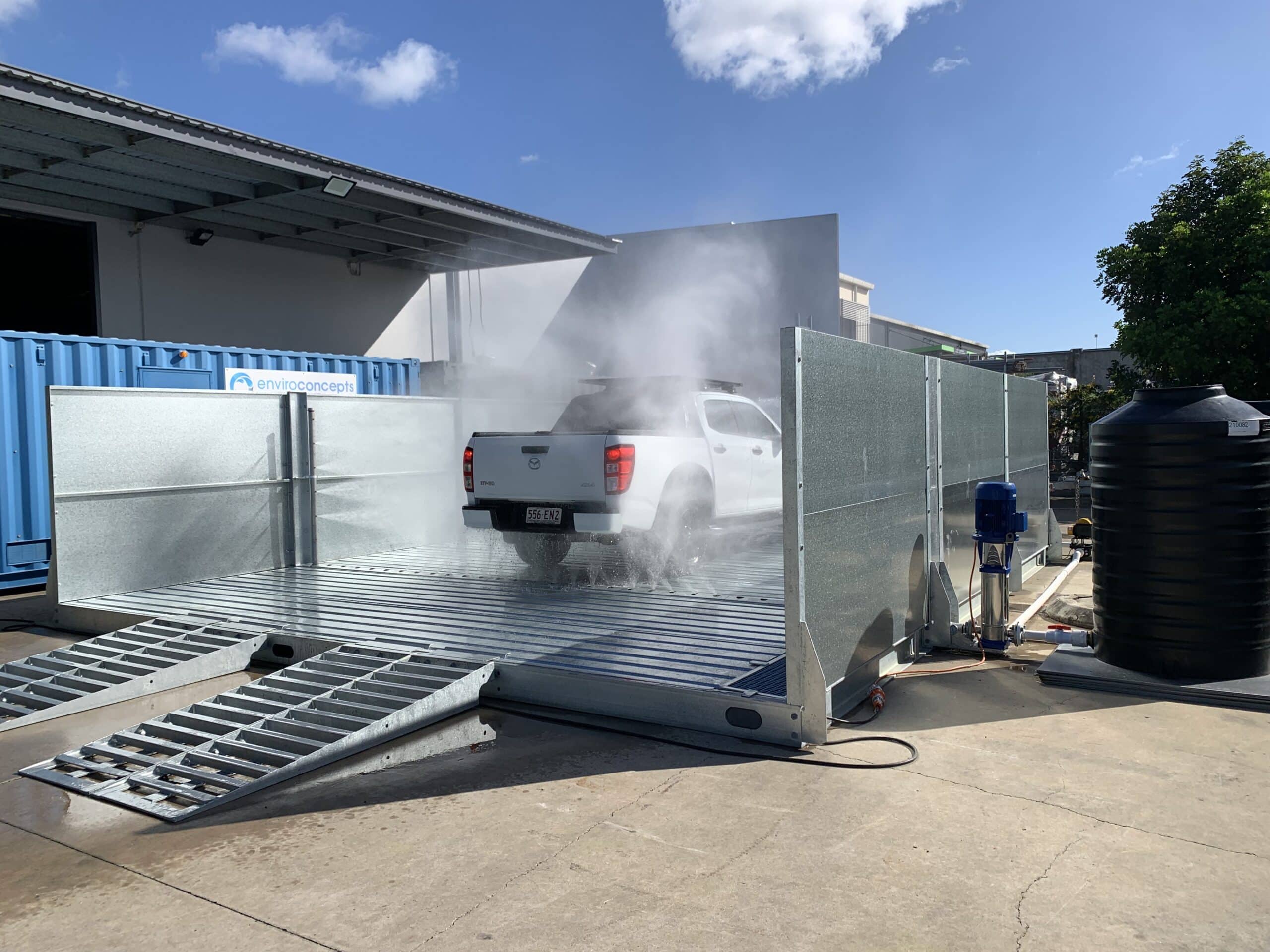

IMG 1467 scaled

Underbody Wash Bay with integrated Spray Bar

The Enviroconcepts Underbody Wash Bay is a modular vehicle cleaning system engineered to remove mud, salt, and biosecurity hazards from the underside of vehicles. Designed for durability and efficiency, this wash bay is ideal for industries requiring consistent, reliable underbody cleaning in both remote and fixed-site locations.

Product Description

The system includes a heavy duty wash pad, ramps, walls, gutter box, and a fully integrated high-pressure underbody spray bar. The modular design allows for rapid deployment without the need for extensive civil works, and it supports vehicles up to 12 tonnes per axle.

Spray Bar Description

The integrated high pressure underbody spray bar is designed to deliver powerful jets of water to critical undercarriage areas. Key features include:

  • 360° coverage: Strategically angled nozzles ensure complete spray coverage beneath vehicles, targeting the chassis, suspension, axles, and wheel arches.

  • Heavy duty stainless steel galvanized construction: Built for harsh environments, the spray bar resists corrosion and wear.

  • Optional multi-stage cleaning: Can be configured with multiple spray stages for heavily soiled vehicles.

  • Custom nozzle flow rates: Adjustable pressures and spray angles tailored to site-specific requirements.

This system enhances vehicle hygiene, supports environmental compliance, and reduces the risk of transporting contaminants off-site.

Spray Bar

Key Features

  • Axle Rating: 12T capacity, suitable for trucks, trailers, and heavy-duty utility vehicles.

  • Pad Dimensions: 2.4m (L) x 6.5m (W)

  • Modular Build: Pre engineered components for fast setup

  • Construction: Hot dip galvanised steel for strength and longevity

  • No Civil Works: Fully relocatable system deployable on any ground type

Used In

  • Mining

  • Construction and infrastructure projects

  • Quarantine and biosecurity compliance zones

  • Waste, recycling, and industrial transport yards

Water Treatment Integration

Paired with any of Enviroconcepts advanced water treatment solutions:

  • CMS (Continuous Media System): Captures up to 95% of suspended solids

  • OWS (Oil Water Separator): Removes hydrocarbons via coalescing plate technology
