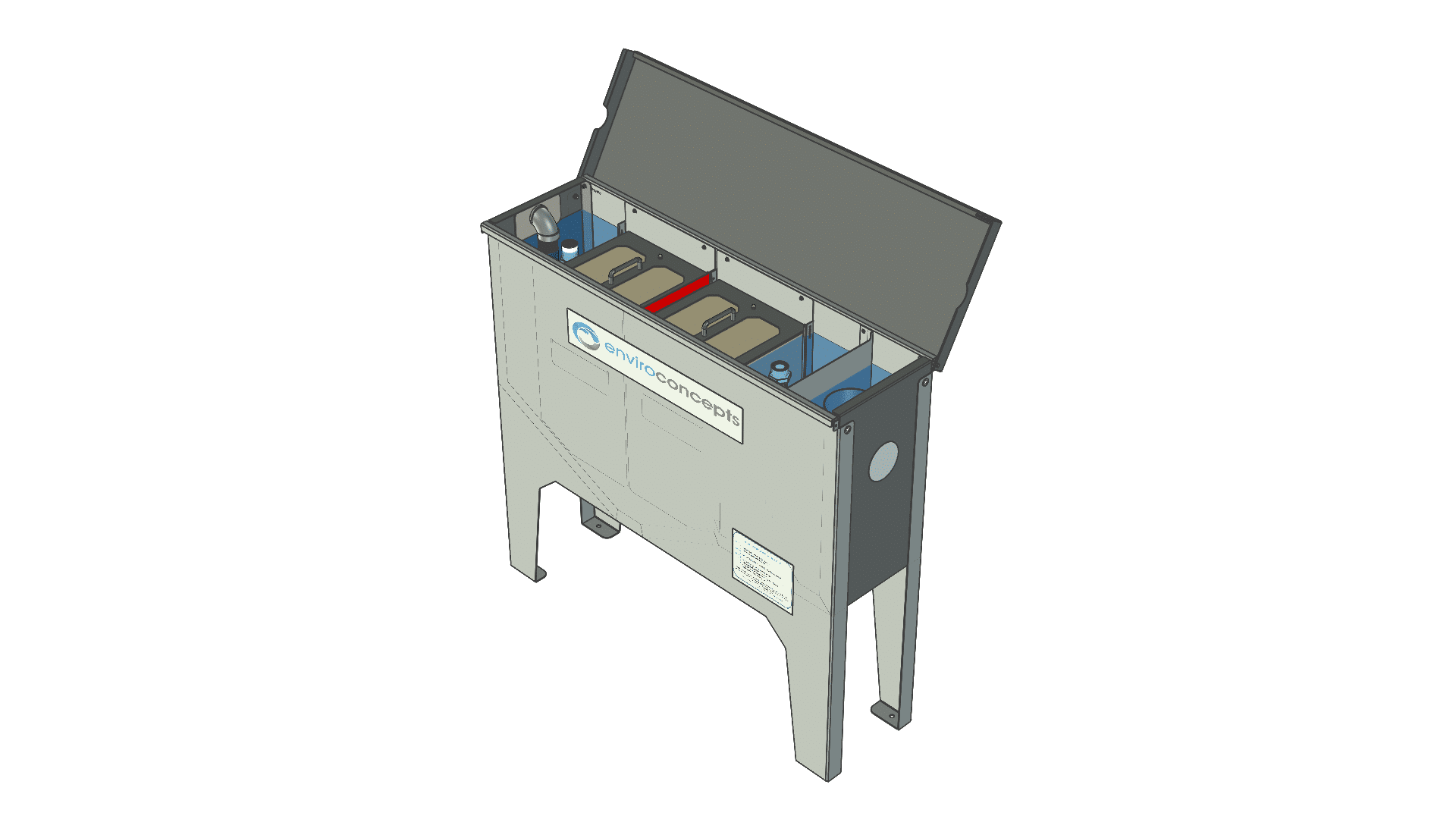

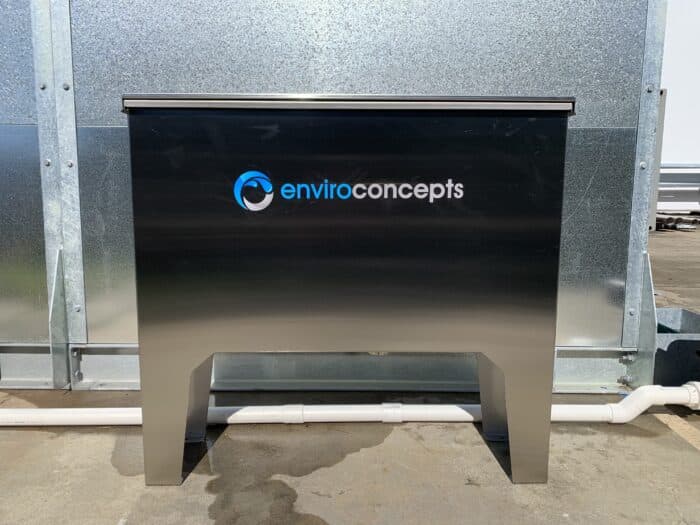

Oil Water Separator

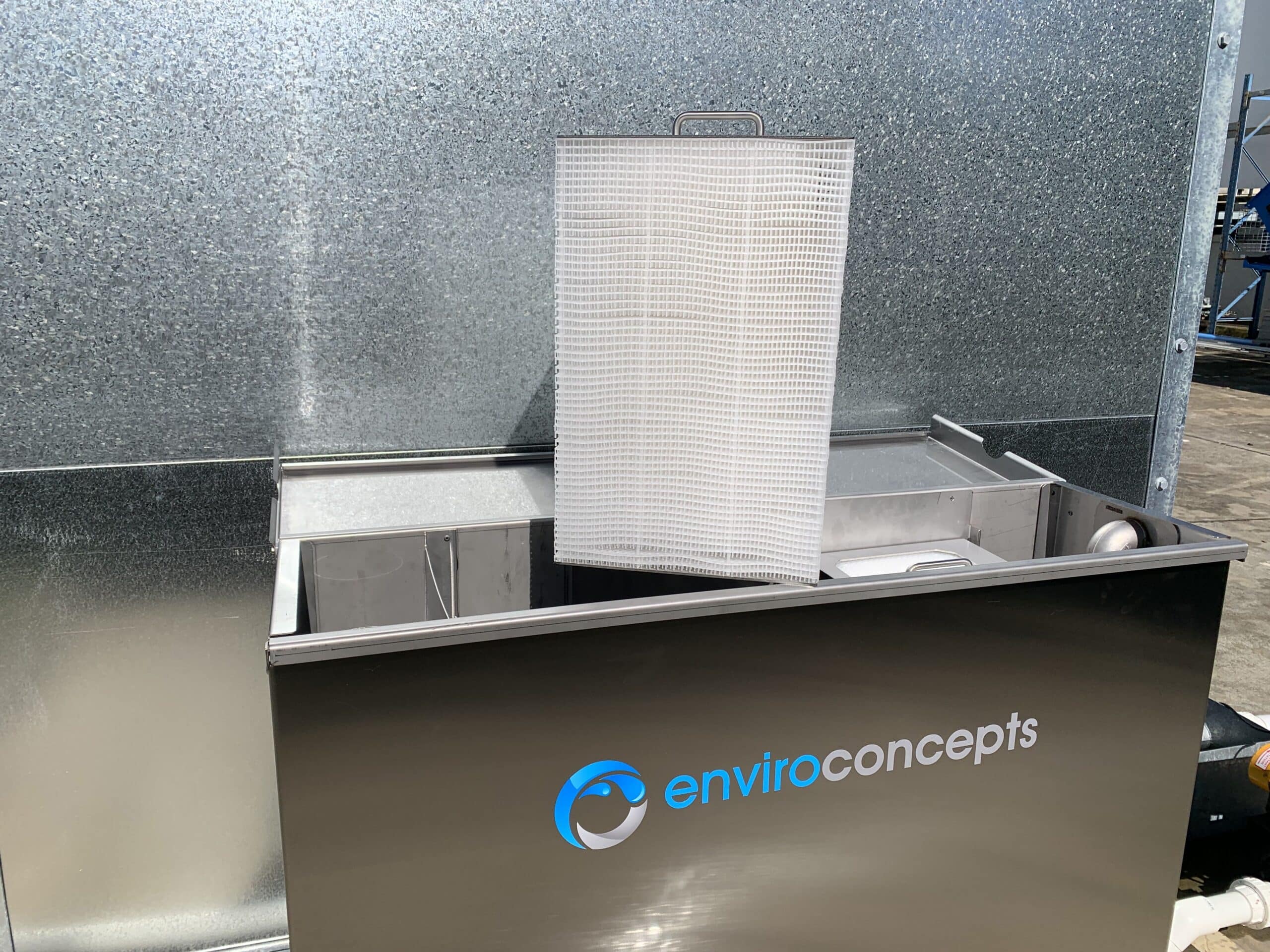

Separation Type	Coalescing Plates
Types of Oil Separation	Gasoline, Diesel, Lubricant, Grease
OWS Dimensions	1.18m Long x 0.36m Wide x 1.11m High

Oil Water Separator | Specifications

Model	Length	Width	Height
OWS-30	1188mm	367mm	1112mm
OWS-50	1188mm	367mm	1198mm
OWS-100	1188mm	674mm	1198mm

Specifications
Separation Type	Coalescing Plates
Oil Types	Gasoline, Diesel, Lubricant, Grease
Flow Capacity	10-100L/min
Material of Construction	Stainless Steel
Fats, Oils & Grease Concentrations	2000 mg/L (max)
Suspended Solids Concentrations	1500 mg/L (max)
Oil Droplet Diameter	10 to 100um
Fats, Oils, & Grease Reduction	Up To 95%
Operating pH	6 to 10 pH
Operating Temperature	Below 40C

Pad Qty:	0.5 Pad
Wash Bay Size:	2.4m Long x 3.5m Wide
Walls:	1.2m \| 1.8m \| 2.4m High
Ramps:	0.6 Wide x 1.5m Long each
Gutter:	Galvanised with float switch
Weight Capacity:	2 Tonne per axle rating
Warranty:	10 Years structural warranty

Pad Qty:	1 Pad with 1.1m wide walkways
Wash Bay Size:	6.0m Long x 4.7m Wide
Walls:	2.0m High
Ramps:	0.9 Wide x 1.5m Long each
Gutter:	Galvanised with float switch
Weight Capacity:	2T and 12T (Tonne per axle rating)
Warranty:	10 Years structural warranty

Pad Qty:	6 Pads
Wash Bay Size:	14.4m Long x 6.5m Wide
Walls:	1.2m \| 1.8m \| 2.4m High
Ramps:	2T – 1.5m Long & 12T 2m Long
Gutter:	Galvanised with float switch
Weight Capacity:	2T and 12T (Tonne per axle rating)
Warranty:	10 Years structural warranty
