Specification for Truck Wash Bay | 12T
| LOAD RATING | LENGTH A(MM) | WIDTH B(MM) | HEIGHT C(MM) | GUTTER WIDTH(MM) |
|---|---|---|---|---|
| 12T/axle | 6500 | 2400 | 204 | 500 |
| LOAD RATING | WIDTH B(MM) | LENGTH A(MM) |
|---|---|---|
| 12T/axle | 600 | 2000 |
-
- Rumble Grid Finish

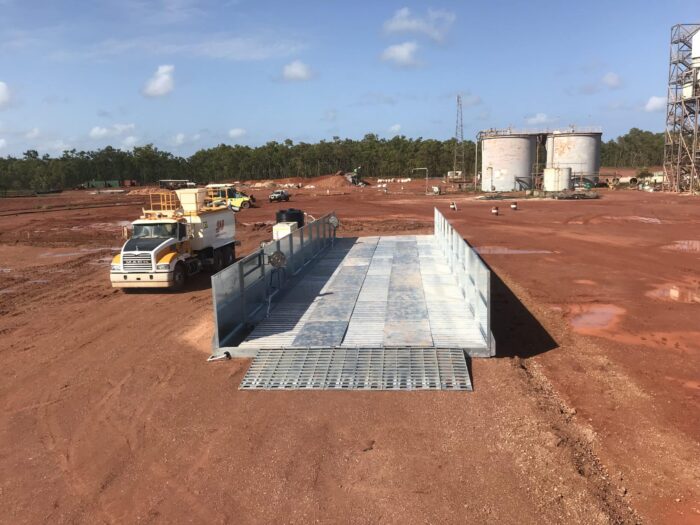

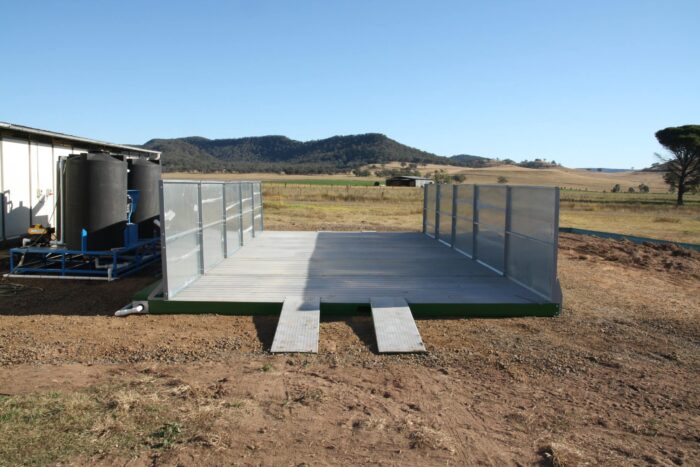

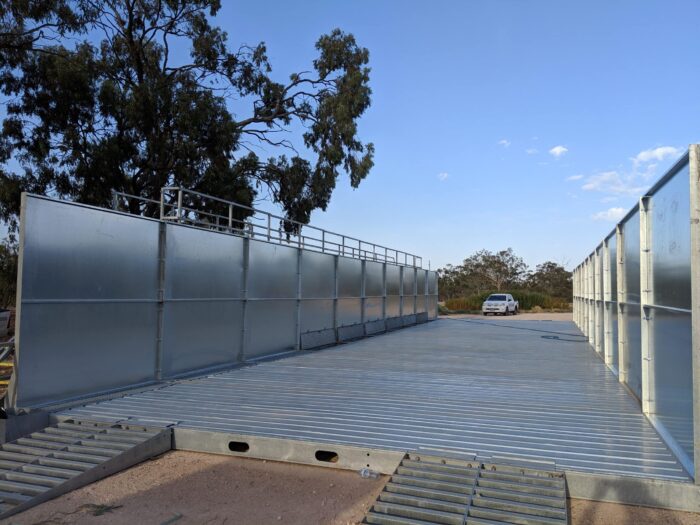

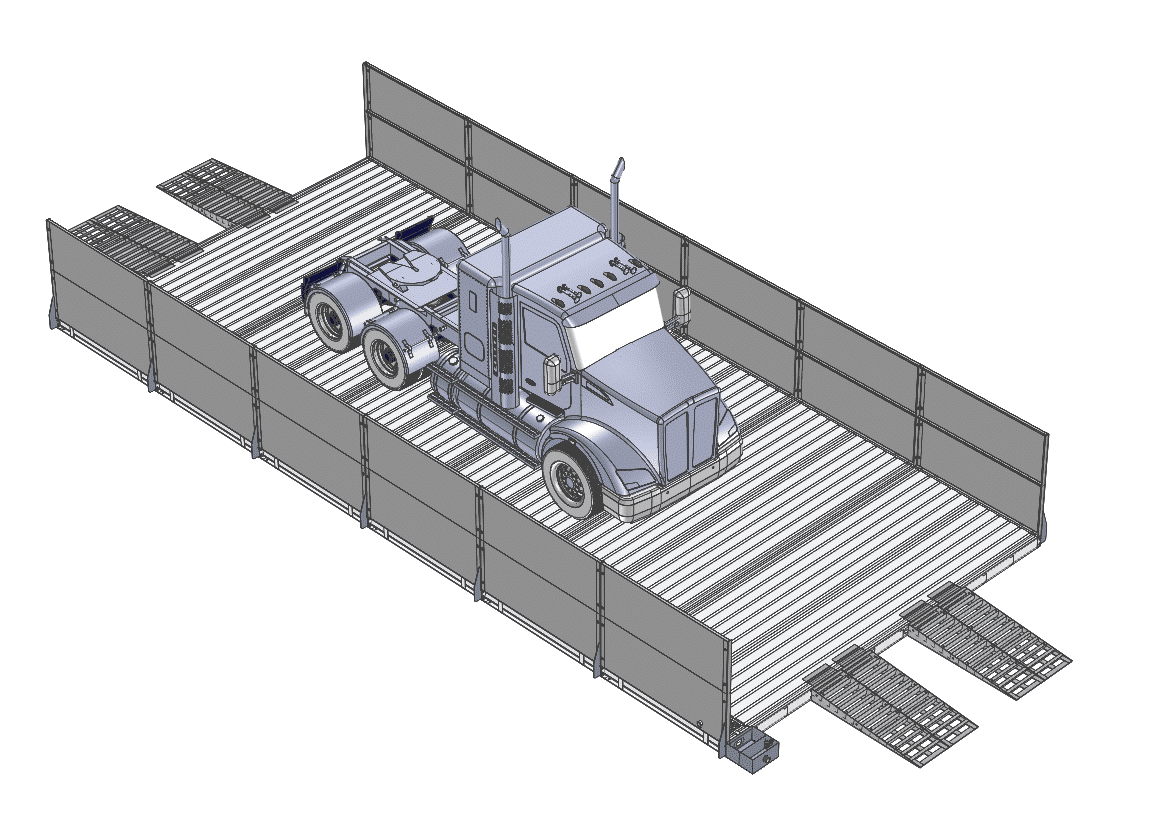

This wash bay can be configured as a drive through or drive-on, reverse-off option. The walls come in sections of 2.4m Long and either 1.8m High or 2.4m High. And could be made from steel or polycarbonate.
-
- 3-Sides Walls
-
- 2-Sides Walls
| LOAD RATING | A(mm) | B(mm) |
|---|---|---|
| 12T/axle | 100 | 100 |
Solid Interceptor Oil Separator | SIOS
System Specifications
| Separation Type: | Coalescing Plates |
| Oil Types: | Treats water with suspended solids, oil and grease |
| Flow Rate Capacity: | 30 | 50 | 100 Liters per minute. Up To 6000L/hr |
| Removes: | Suspended solids and up to 95% oil content |
| Rain Diversion System: | No |
Solid Interceptor Oil Separator Top Mount | SIOSTM
System Specifications
| Filtration Type: | CMS – Continuous Media Systems can efficiently remove up to 95% suspended solids. |
| OWS- Coalescing Plates oil water separation | |
| Oil Types: | Treats water with suspended solids, oil and grease |
| Flow Rate Capacity: | 30 | 100 Liters per minute. Up To 6000L/hr |
| Removes: | Suspended solids and up to 95% oil content |
| Rain Diversion System: | Yes |
Water Recycling Plant | EL
System Specifications
| Filtration Type: | CMS – Continuous Media Systems can efficiently remove up to 95% suspended solids. |
| OWS- Coalescing Plates oil water separation | |
| DBMF – Granular filter for removal of total suspended solids | |
| Disinfection System: | Chlorine dosing and pH correction system |
| Flow Rate Capacity: | 25 | 100 Liters per minute |
